WHEEL EXCAVATORS
ATM wheel excavators have excellent digging force and reach in narrow areas. Its efficiency in consumption and its quality of components maximize productivity.
WT® SERIES

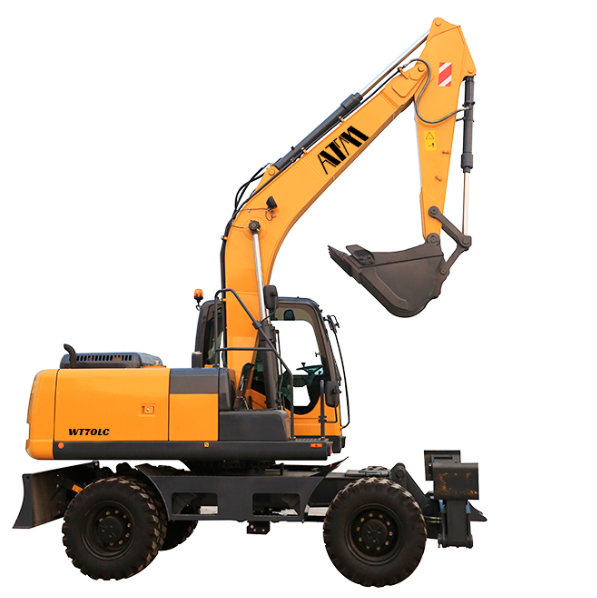

WT70LC
Engine power
65hp / 48kw
Gross weight
7.0Tn
Bucket capacity
0.21m3
Super strong configuration, excellent performance, import configuration. Domestic famous brand engine, strong power, to meet the efficient operation requirements. Accurate matching design and advanced energy saving control make the machine less fuel consumption. Low emissionSuper strong configuration, excellent performance, import configuration.
|
Performance Parameter |
|
|
Bucket Capacity（M³） |
0.21m3 |
|
Swing Speed（Rmp） |
0- |
|
Gradeability（°） |
25 |
|
Bucket Max.Digging Force（KN） |
45 |
|
Arm Max.Digging Force（KN） |
36 |
|
Engine Model |
YC4DK85- |
|
Power/Rotation Speed （KW/Rmp） |
62.5/2200 |
|
Tyre Model |
8.25- |
|
System Pressure（MPa） |
20 |
|
Operation Weight(KGS) |
7000 |
|
Working Range |
|
|
Max.Digging Height（Mm） |
6900 |
|
Max. Dumping Height（Mm） |
5140 |
|
Max.Digging Depth（Mm） |
4360 |
|
Max.Vertical Digging Depth（Mm） |
4060 |
|
Max.Digging Radius（Mm） |
6950 |
|
Min.Swing Radius（Mm） |
2670 |
|
Dozer Blade Max.Lifting Height（Mm） |
310 |
|
Dozer Blade Max.Cutting Depth（Mm） |
130 |
|
Dimensions |
|
|
Length*Width*Height（Mm） |
6522*2205*2850 |
|
Cabin Height（Mm） |
2850 |
|
Sproket To Idler（Mm） |
2400 |
|
Axle Distance（Mm） |
1675 |
|
Min.Ground Clearance（Mm） |
260 |
|
Tail Swing Radius（Mm） |
1945 |
|
|
|
WHEEL EXCAVATORS
Strong structure, low emissions, stability improved, the best choice.
