D® SERIES
|
Rated loading |
2800kg |
|
Overall weight |
6500kg |
|
Rated bucket capacity |
1.5m³- |
|
Maximum tractive force |
≥54KN |
|
Maximum breakout force |
≥45.4KN |
|
Maximum gradeability |
30° |
|
Maximum dump height |
2800mm |
|
Maximum dump reach |
752mm |
|
Overall dimension(L×W×H) |
5600×2090×2890mm |
|
Minimum turning radius |
5251mm |
|
Engine Model |
WEICHAI DEUTZ WP6G12 |
|
Optional model |
CUMMINS |
|
Engine Type |
Vertical,in- |
|
Rated power |
97KW |
|
Rated speed |
2400 RPM |

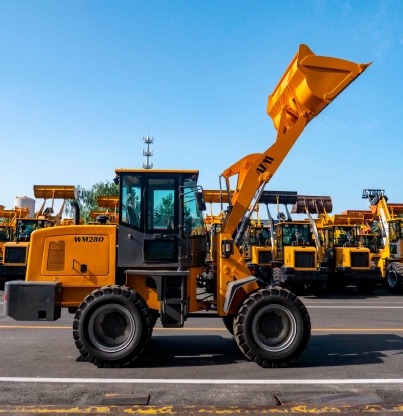

WM280
Engine power
125hp / 92kw
Gross weight
6.5Tn
Bucket capacity
1.5m3
Wheel loaders
The best of the market, reliable, durable, easy to mantain.
ATM wheel loaders offer high levels of comfort and safety, its spacious cabin with greater viewing space allows the operator to appreciate objects with ease. The loading and unloading cycles have also improved, as well as the fuel efficiency.
